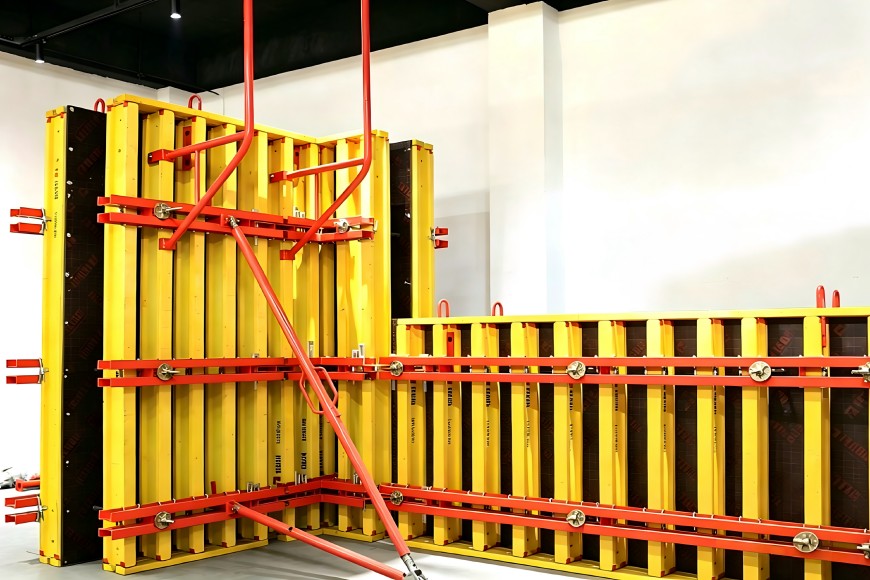

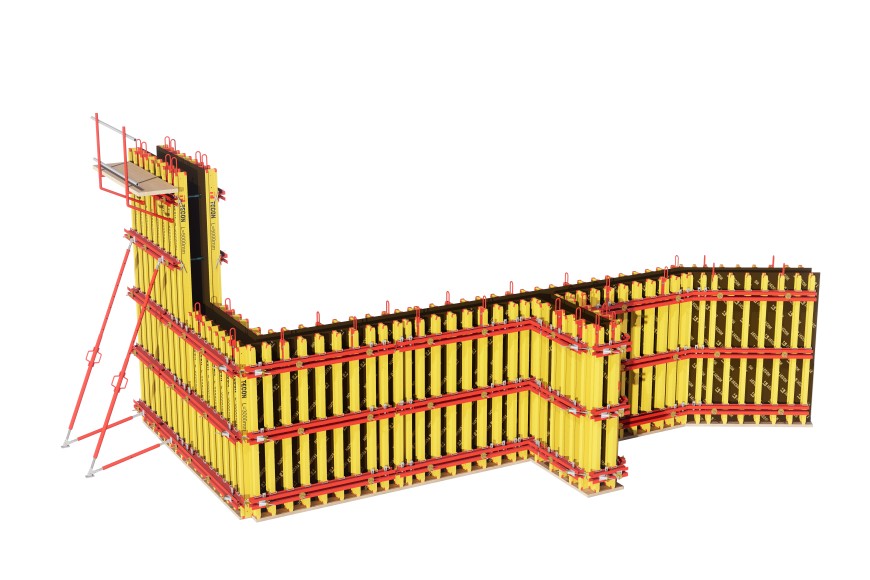

TECON Base 20 Wall Formwork
Customized and widely used timber beam formwork for all sizes and shapes vertical structure
TECON Base 20 Wall Formwork is a versatile wall formwork system suitable for walls of various sizes, shapes, and complexity. Its independent components allow flexible assembly, making it ideal for both standard configurations and curved structures. The system ensures quick setup, high reusability, and strong cost-efficiency across different project needs.
Features & Benefits
Base 20 Wall Formwork Features and Benefits

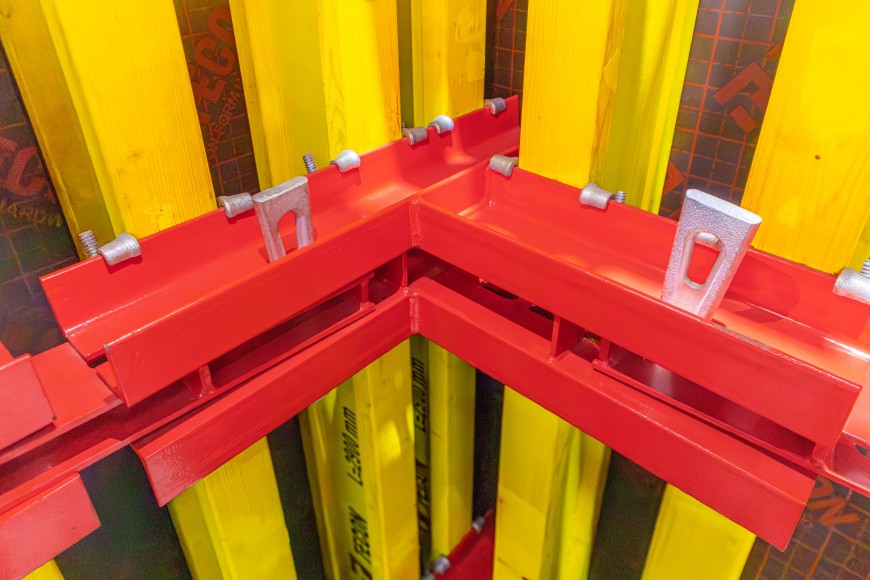

- Versatile for All Wall Shapes – Panels up to 9 m high with adjustable widths and pre-engineered steel walings adapt easily to straight, angled, or curved walls, enabling precise formwork for complex designsa .
- Fresh Concrete Bearing Capacity – Engineered girder-waler spacing safely withstands fresh concrete pressures up to 90 kN/m², combining strength with adaptable design.
- Customizable Components – Choose plywood in birch, hardwood, poplar, or hollow plastic board (up to 50 uses), and swap H20 timber beams for aluminum to suit different project needs and extend system lifespan.
- Flawless Concrete and Cost-Effective – High-quality formwork ensures smooth concrete surfaces with minimal post-treatment, combining architectural quality and cost efficiency.
- Climbing System Compatible – Integrates smoothly with TECON climbing solutions for higher-level wall construction.
Base 20 Wall Formwork Application

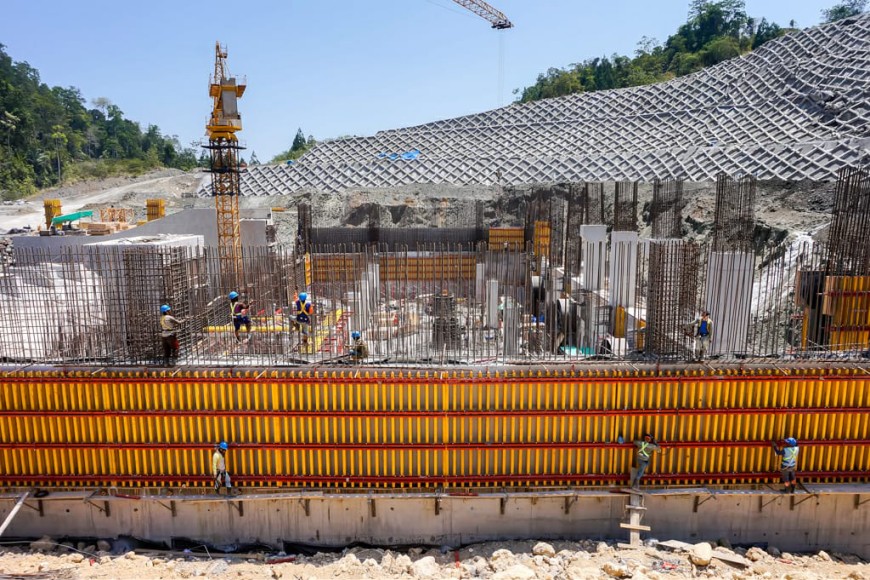

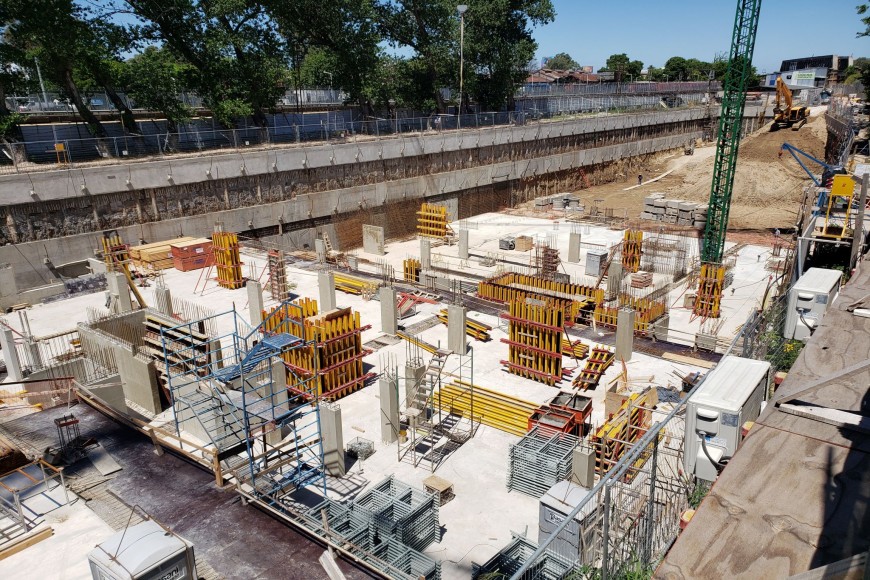

Residential; commercial buildings; tanks; basement; bridge abutment and piers; irregular structure projects
Technical Specifications
Base 20 Wall Formwork Technical Specifications
| System Type | Timber Wall Formwork |
| Material | Imported spruce wood, H20 timber beam, aluminum beam, and steel accessories |
| Formwork Weight | 65 kg/m2 |
| Max Unit Size | 5×6 m |
| Max One-time Casting Height | 12 m |
| Max Bearing Capacity | 90 kN/m2 |
| Installation Time | 100 m2/day/unit (A group 4-6 people) |
| Formlining | 18/21 mm birch plywood, hardwood, and polar plywood;
Hollow Plastic Board； TECON Plas-tech |
| Size and Shape | Customized |
| Handling Method | Tower Crane |
| Load Quantity | Around 350 m2 per 40 HQ container (with accessories) |
Base 20 Wall Formwork 3D Assembly Tutorial
