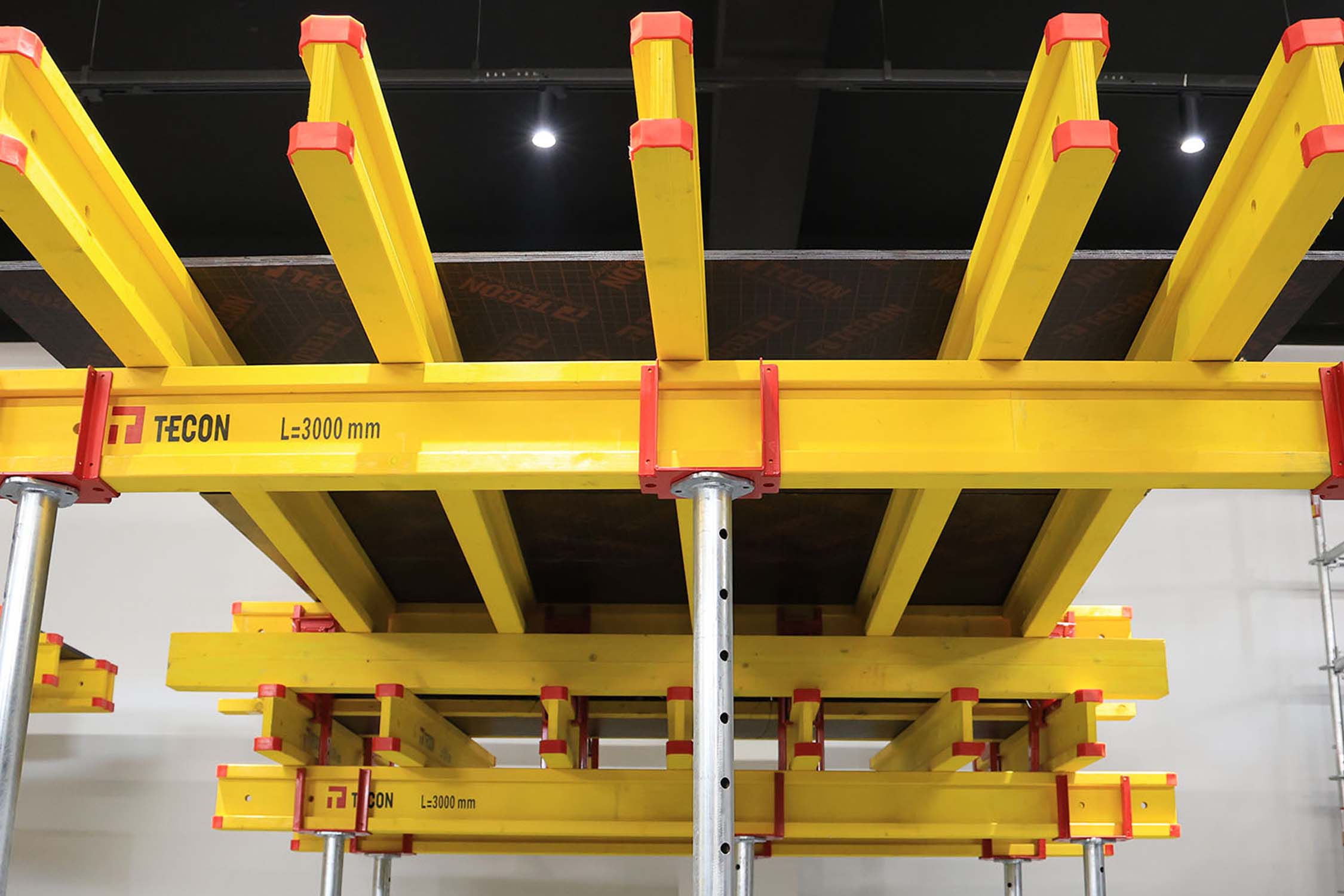

TECON Slab Flex 20 Formwork
The most flexible timber beam formwork for all layouts
TECON Slab Flex 20 Formwork offers flexible positioning and adjustable spacing, making it suitable for various slab structures, including flat slabs, drop-beam slabs, and irregular floor layouts. It provides a flexible and tailor solution for diverse building projects.
Features & Benefits
Slab Flex 20 Formwork Features and Benefits
- Cost-Saving – Timber beams enable fast construction with prefabricated components and remain more economical than steel due to lower installation and maintenance costs.
- Selective Components – Offers multiple plywood options including birch, hardwood, and poplar, or hollow plastic board with a service life of up to 50 uses depending on project requirements.

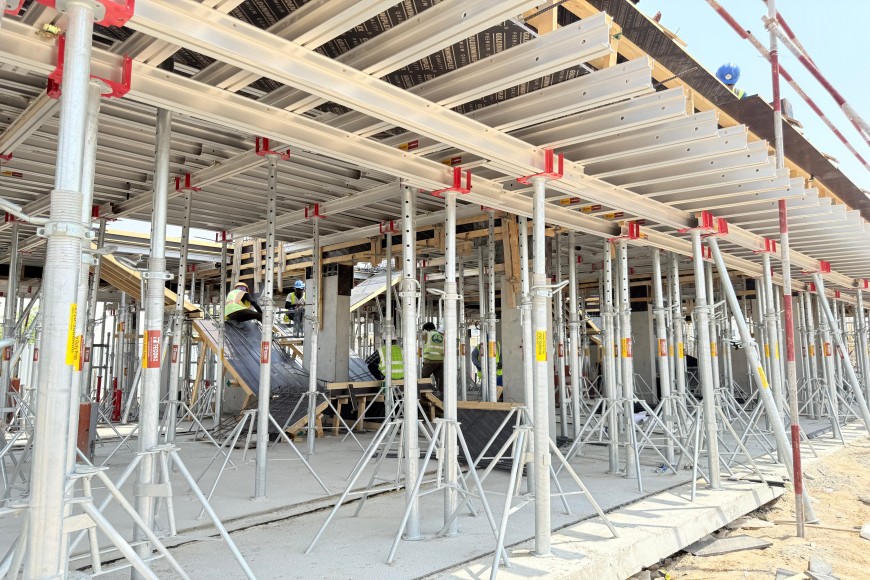

- Replaceable for Extended Lifespan – The H20 timber beam can be substituted with an aluminum beam to suit different construction conditions and enhance overall system durability.
- Fair-Face Exposed Concrete Quality – Film-faced plywood provides a clean, natural finish and stable support, helping achieve consistent fair-faced concrete results.

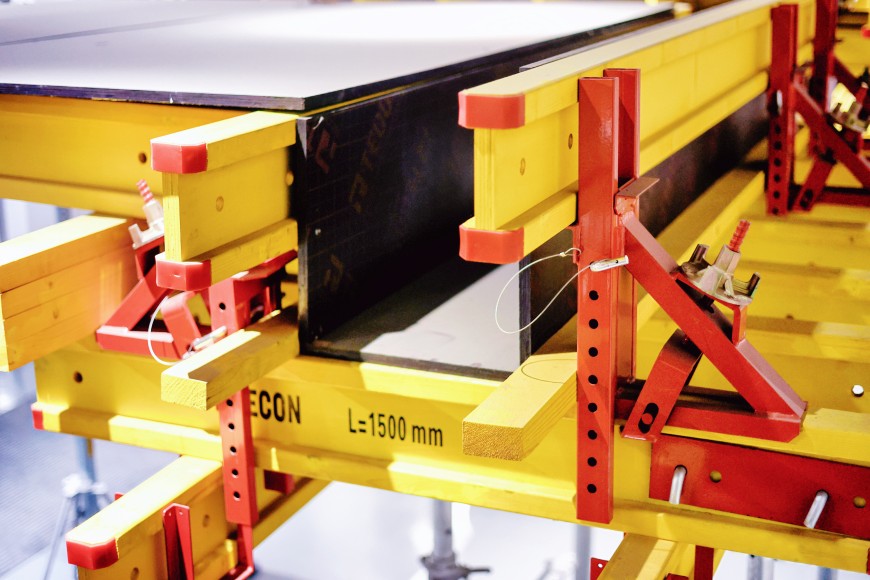

- Flexible & Adaptable – Suitable for all slab thicknesses, drop beams, irregular layouts, and complex floor plans.
Slab Flex 20 Formwork Application

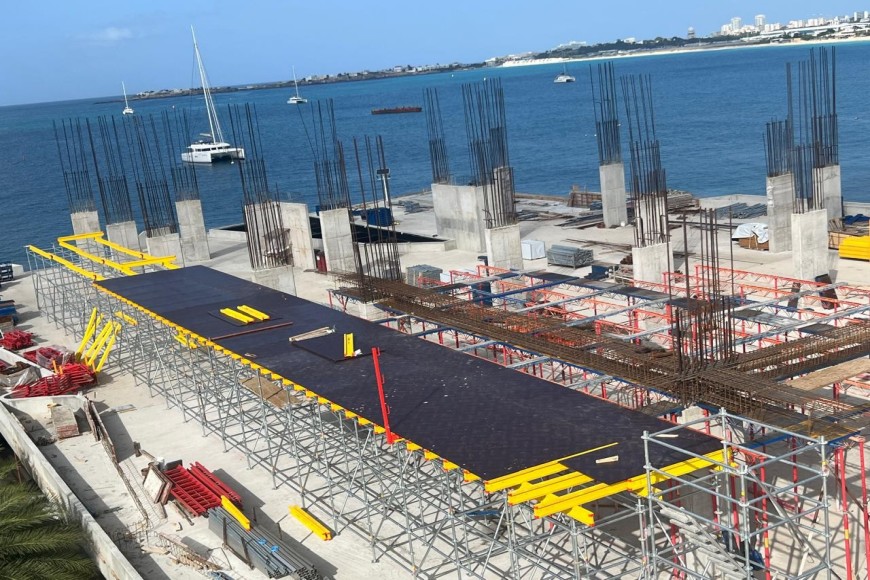

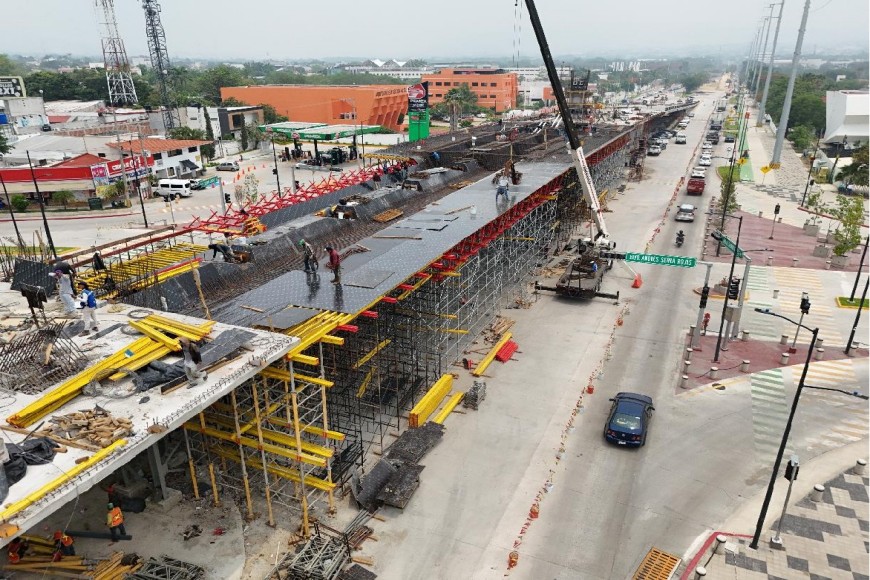

Compatible with Shoring Tower TST60, Ringlock Scaffolding Slab and beams in all types of buildings, fly-over roads, bridges, tanks, parking lots, factory buildings
Technical Specifications
Slab Flex 20 Formwork Technical Specifications
| System Type | Timber Slab Formwork |
| Material | Imported spruce wood, H20 timber beam, aluminum beam, and steel accessories |
| Standard Shoring | Class D/E Heavy Duty Prop (EN 1065) |
| Size and Shape | Customized |
| Max Permissible Slab Thickness | 1000 mm |
| Installation Time | 80 m2/person/day |
| Formlining | 18/21 mm birch plywood, hardwood, and polar plywood; Hollow Plastic Board； TECON Plas-tech |
| Early Dismantle System | Optional |
| Handling Method | Manual/Tower Crane |
| Load Quantity | Around 350 m2 per 40 HQ container (with accessories) |

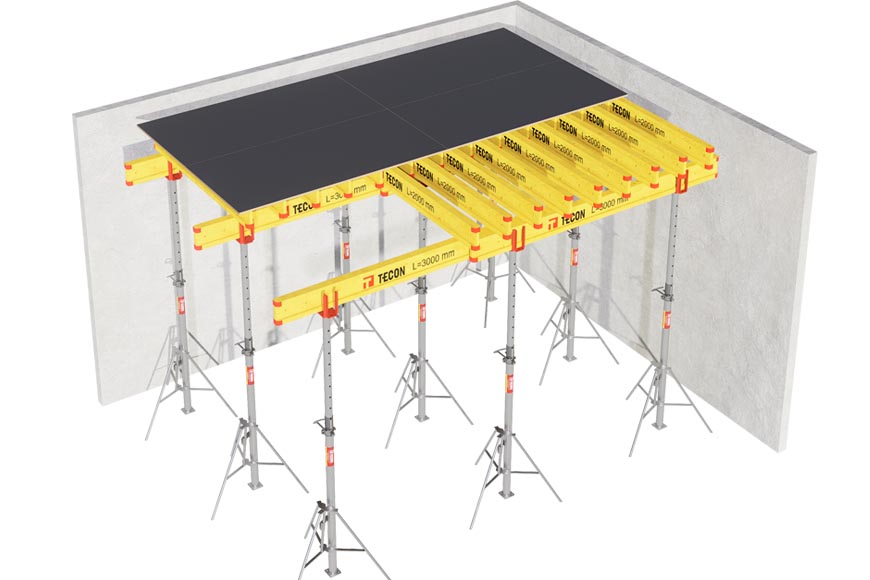

Slab Flex 20 Formwork 3D Assembly Tutorial
